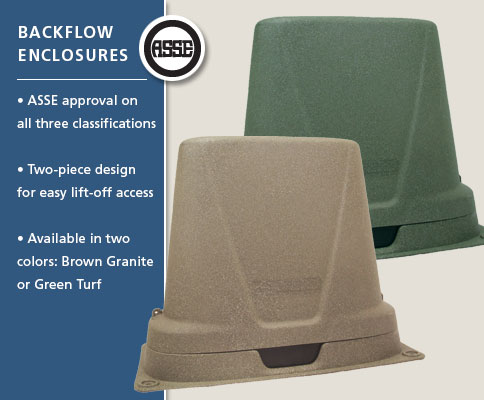

Backflow Enclosures for Outdoor Installation

FOR OUTDOOR INSTALLATIONS

Our Dekorra enclosures are designed primarily for the backflow market and fit 3/4” – 2” backflow assemblies and pressure vacuum breakers. Available in three classifications; C3. Dekorra enclosure and base only with hardware C2. Dekorra back-flow enclosure and base, with approved R-13 insulated blanket, or C1. Dekorra enclosure and base with insulated blanket and self-regulating heat source.

Features

  • Durable polyethylene construction
  • Two-piece design with easy lift off access
  • ASSE approval for all three classifications
  • Built in double-locking hasp design

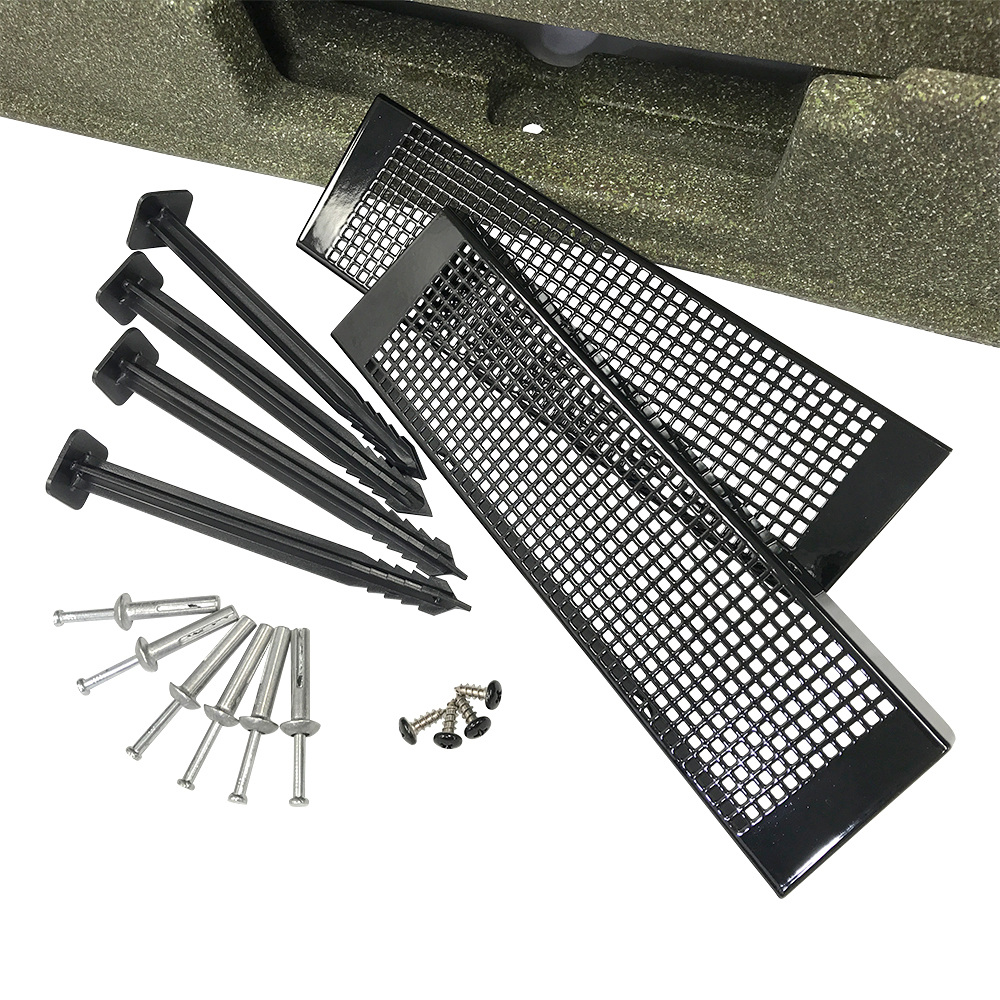

  • Metal insert vents included standard
  • Mount to concrete or base grade

ASSE Class Designations

Class I – Freeze protection. Dekorra Enclosures Class I and I-V shall have a minimum thermal resistance value of eight and a positive means of heat. Dekorra Backflow enclosures have been designed and constructed to maintain a minimum internal temperature of 40.0°F.

Class II – Freeze retardant. Dekorra Enclosures Class II and II-V shall have a minimum thermal resistance value of eight. Dekorra Backflow enclosures have been designed and constructed to be installed in minimum external temperatures of 33.0°F.

Class III – Non-freeze protection. Dekorra Enclosures Class III and III-V are designed and constructed to provide system security for components when freezing temperatures are not a consideration.

Backflow Enclosures are available in brown beige granite and
army green granite colors.

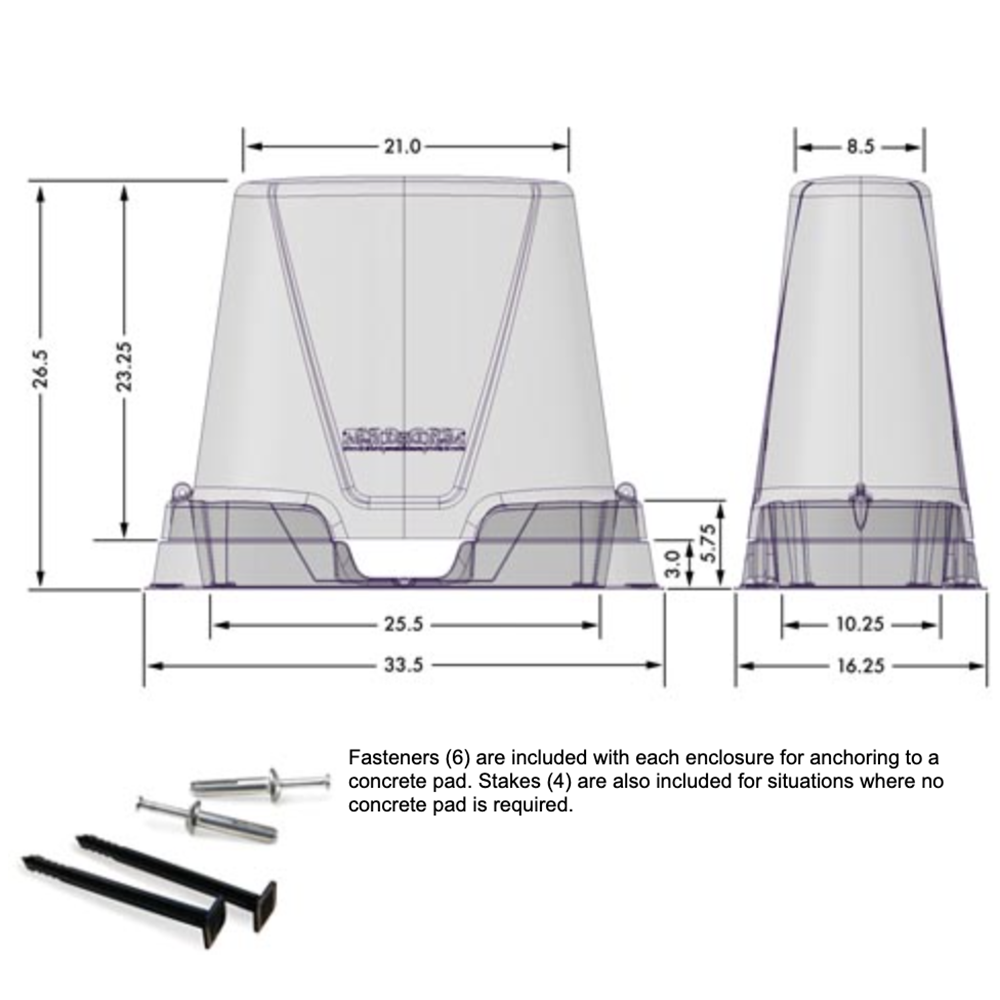

Backflow Enclosure Dimensions

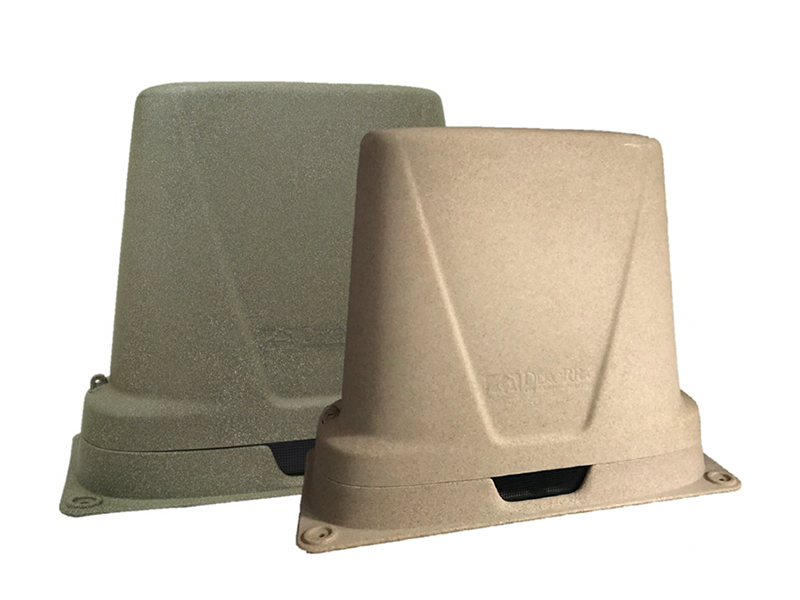

Model 301

Color Options include:
Brown Granite (BG) Green Turf Granite (GT)

Model 302 Image

Model 301-GT

Model 301-GT-C3
UPC 6 56803 33011 2

Model 301-GT-C2
UPC 6 56803 23011 5

Model 301-GT–C1
UPC 6 65803 13011 8

Model 301-BG

Model 301-BG-C3
UPC 6 56803 33012 9

Model 301-BG-C2
UPC 6 56803 23012 2

Model 301-BG–C1
UPC 6 65803 13012 5

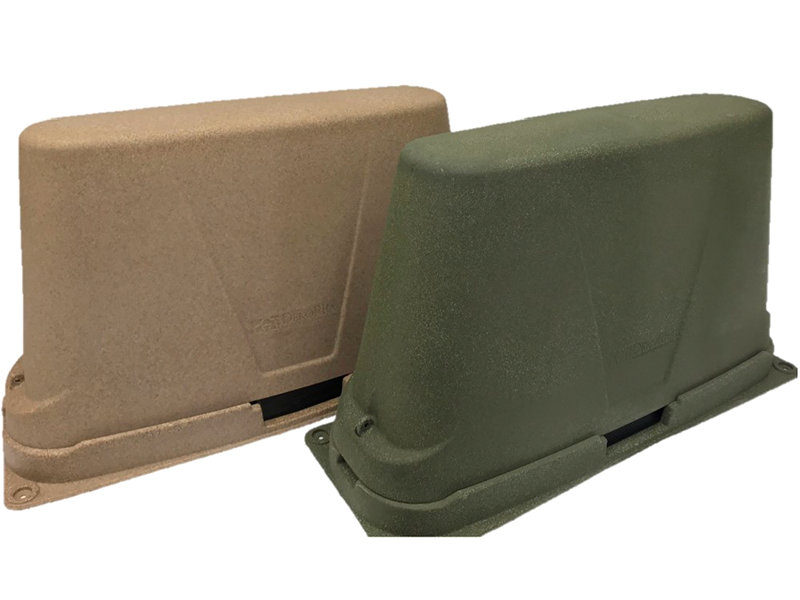

Model 302

Color Options include:
Brown Granite (BG) Green Turf Granite (GT)

Model 302 Image

Model 302-BG

Model 302-BG-C3
UPC 6 56803 33022 8

Model 302-BG-C2
UPC 6 56803 23022 1

Model 302-BG–C1
UPC 6 65803 13022 4

Model 302-GT

Model 302-GT-C3
UPC 6 56803 33021 1

Model 302-GT-C2
UPC 6 56803 23021 4

Model 302–GT–C1
UPC 6 65803 13021 7
